Outdoor 55-inch single-sided ultra-thin and beautiful large-screen advertising booth

Key FeaturesLanguages: Simplified Chinese, Traditional Chinese, English, French, German, Italian etcPowerful background management functions to manage advertising machines anywhere via the InternetSupport vertical screen playback, arbitrary split screen, scrolling subtitles, time switch, USB data import, play log records and oth

Featured Products


Key Features

  1. Languages: Simplified Chinese, Traditional Chinese, English, French, German, Italian etc
  2. Powerful background management functions to manage advertising machines anywhere via the Internet
  3. Support vertical screen playback, arbitrary split screen, scrolling subtitles, time switch, USB data import, play log records and other functions
  4. Support loop, timing and other play modes and playlist preset functions
  5. Available through management software, remote power on or off, restart and timer switch function
  6. Support network remote update program, you can also use U disk to manually update
  7. When the network is disconnected, the AD player will play as a click advertisement machine
  8. Support for HTTP, log management, remote on demand, picture linking programs, memory playback, third party docking, dynamic screen capture, load balancing
 Web Edition Features
         CPU A20: dual-core ARM Cortex-A7 architecture, clocked at 1.0 GHz
  1. Built-in memory: NAND FLASH 4G (optional 8G/16G/32G)
  2. Memory Expansion: support 32GB SD card expansion, simultaneously support SATA hard disk
  3. Memory: 1G (optional)
  4. Network Support: LAN/WAN/WIFI/3G (optional)
  5. Bluetooth: Bluetooth function (optional)
  6. File System: Operating System Android 4.2.2 (support upgrade)


Main Specification

Model NumberYH -OB46YH -OB55YH -OB75
LCD Display
Description46inches outdoor
digital signage
55inches outdoor
digital signage
75inches outdoor
 digital signage
BacklightLED BacklightLED BacklightLED Backlight
Active Display Area1010mm*554mm1209.6mm X 680.4mm1649.664mm X927.936mm
Brightness1500-3000cd/m21500-3000cd/m21500-3000cd/m2
Resolution1920*10801920*10801920*1080 / 3840*2160
Contrast Ratio1500:11500:11500:1
Pixel Pitch0.53*0.53mm0.63mm X 0.63mm0.4296(W)mm X 0.4296(H)mm
Viewing Angle178°(H), 178°(V)89°/89°(L/R),89°/89°(U/D)89°/89°(L/R),89°/89°(U/D)
Display Color16.7m16.7M16.7M
Response Time8ms10ms12ms
Operating SystemAndroid / Window / LinuxAndroid / Window / LinuxAndroid / Window / Linux
Mechanical
ConstructionAluminum alloy frame + Bending welding of cold rolled steel + power coating + toughened glass
Dimension
(W * H * D)
625mm*1005.5mm*100mm
(Not including the base)
1950mm (H)*980mm(W)*450mm(D)2581mm (H)*1248mm(W)*300mm(D)
Weight60KG70KG130KG
Power
Voltage110V / 220V optionalAC100-240V  50/60HzAC100-240V  50/60Hz
Power Consumption250W approximate≤360W (+800W air conditioner)≤500W(Average)
Environmental
Operating Temperature-20°C~50°C-20°C~50°C-20°C~50°C
Storage Temperature-30°C~60°C-30°C~60°C-30°C~60°C
Standard size: 46" 55" 75"         Optional size: 32" 43" 46" 49" 55" 65" 75"
The above specification will be update frequently, please refer to the specification of the actual order contract

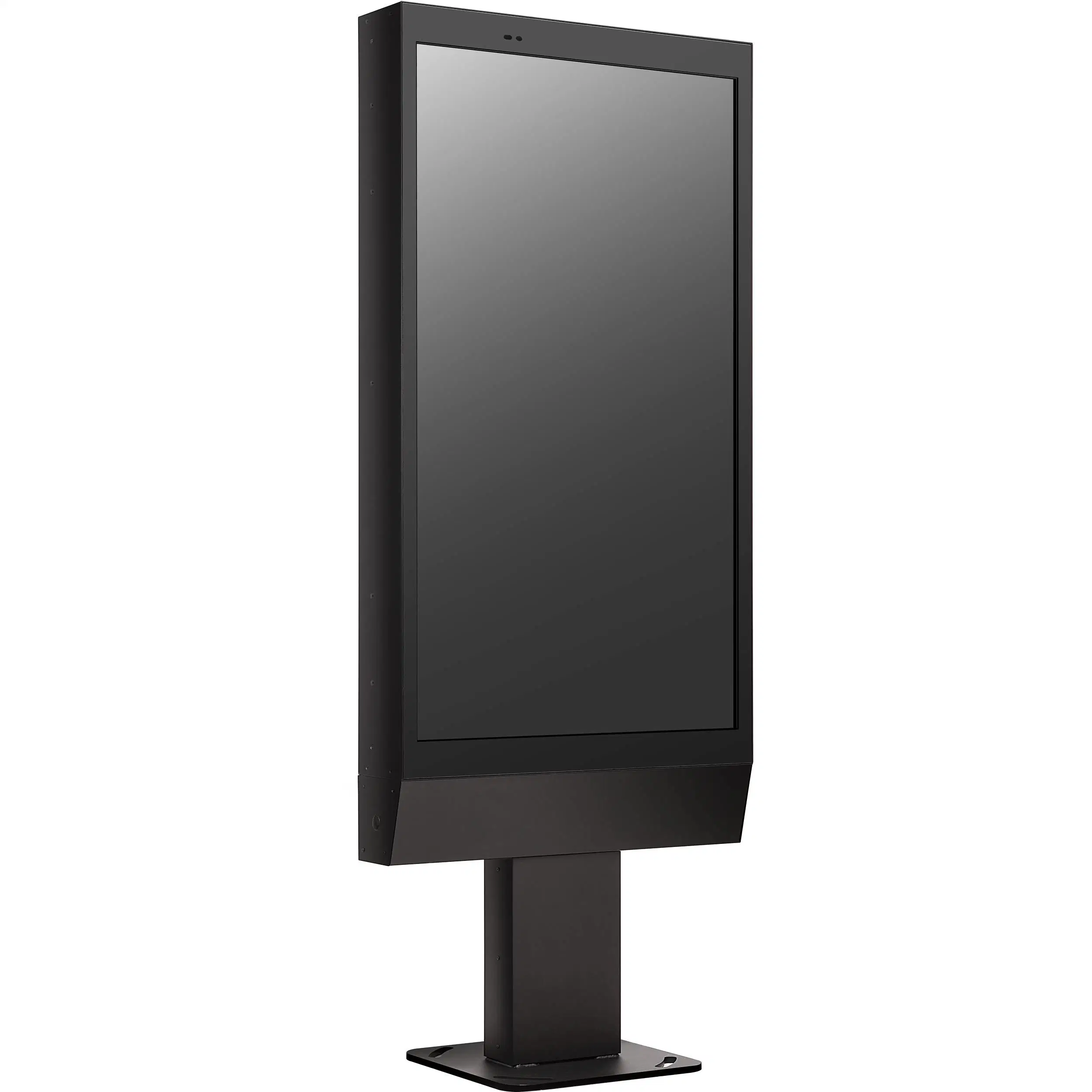

Product Pictures
