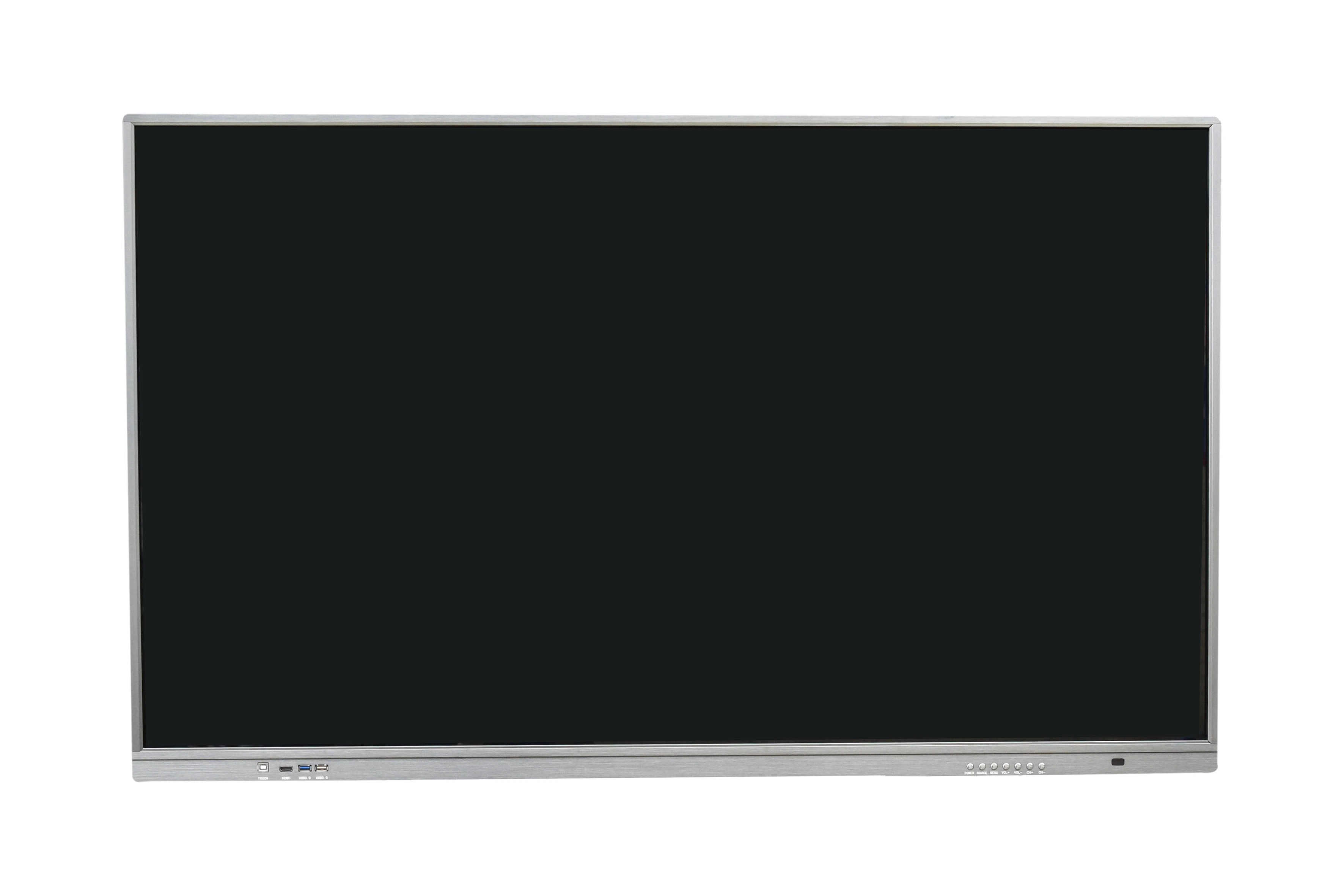

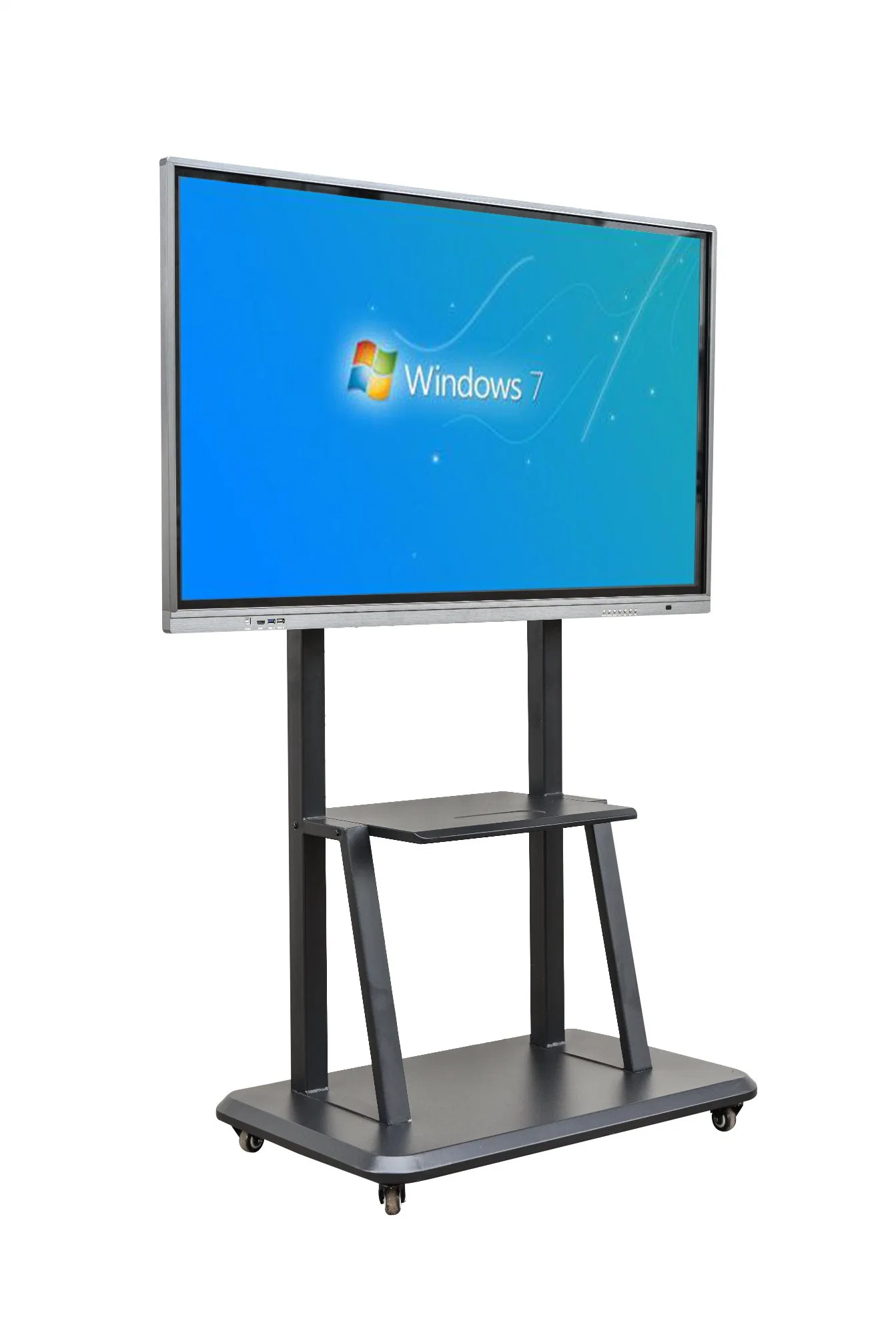

| type | 75" LED android touchscreen monitor |
| screen size | 75 inches (16:9) LED panel |
| display feature | panel: | LED panel |
| screen size | 1660(H) x 928(V)MM |
| resolution | 3840X2160 |
| pixel pitch(mm) | 0.802 (H) x 0.802 (V) |
| display color | 1.07 billion(10 bit) |
| panel's frequency | 120HZ |
| panel's response time | 6ms |
| brightness | 400 cd/m2 |
| contrast | 5000:1 |
| angle view | 178° |
| display format: | Auto/9:16/3:4/Zoom |
| life time | 50,000hours |
| sound/speaker feature | speaker type | build speaker inside,connect the external speaker(optional) |
| speaker output | 10W × 2 |
| Audio Stereo | stereo |
| Android O/S | CPU | MST648,support google play |
| GPU | Mali-450MP4GPU |
| RAM | 2GB |
| SSD(EMMC) | 4GB |
| Operation system | 5.0 and update |
| Multi-touch | support 10 point touch in the android OS |
| In Connections | Video Input | CVBS:X1 |
| VGA:X1 |
| RJ45X1 |
| YPbPr:2 |
| USB port(multi-media):5(one is in the front cabinet for PC,two is back cabinet,one is USB3.0,one is USB interface for touch |
| HDMI input:3PCS(480i, 480p,576i,576p, 720p,1080i,1080p) |
| serial port to control monitor | RS232 port:1( control the LED interactive monitor's mainboard) |
| audio input | L/R channel input, |
| PC audio in:one |
| L/R channel input,YPbPr input/CVBS:2 |
| out connections | video output | CVBS output X1 |
| VGA (output):X1 |
| audio output | earphone jackX1( Ø3.5 JACK L/R) |
| coaxial outputX1 SPDIF in the menu |
| touch output(USB/RS232) | USB touch port:2 (connect with the PC's USB port and realize the touch function) |
| touch screen | induction method | infra-red touchscreen with 20 point touch |
| writing style | hand,other solid (soft tip) object of diameter>8mm |
| response speed | 8ms |
| Touch Durability | No limited |
| Touch Activation Force | No pressure required |
| Power Supply | USB |
| touch accuracy | ±1mm |
| power consumption | ≤80mA |
| Communication interface | full USB speed |
| resolution | 32768X32768 |
| Operation system | Android,Linux,MAC,Windows7,windows8,WIN10 |
| protect glass | protect glass | 4mm tempered glass |
| level | 7 mohs |
| OPS PC (optional) | CPU | Core I3 dual-core,CPU frequency:3.5GHz |
| mainboard | Intel H110 chipset group |
| video card | Integrated |
| sound card | Integrated Realteck ALC887 |
| internet card | intergrated 10/100/1000M with auto NIC |
| memory | DDR4 4G |
| harddisk | SSD 120G |
| operating system | Windows8/Windows 7/ Windows Vista /Windows XP |
| USB port(2.0) | 5(one is in the front cabinet) |
| Network interface | 1 |
| VGA output | 1 |
| HDMI output | 1 |
| earphone output | 1 |
| MIC input | 1 |
| WIFI wireless internet card | 802.11 b/g/n |
| other features | support auto turn off,sleep timer and the other features |
| support HDCP(HDMI) and 1080P video |
| without signal,it will enter sleep model. |
| resume function after turn off |
| remote control/menu | full function remote control,VOL+-,CH+-,SOURCE |
| multi-display menu language,English,Russia,French,Germany,Italy,Spain |
| wall mount | one set (archor bolt inside) |
| Input voltage | AC:100~240V 60/50HZ |
| power rate | 380W |
| standby | ≤0.5W |
| Accessories | manual,remote control,wall mount,battery,power cord,touch cable,,2PCS extendable pen and 2PCS short pen,software inside. |
| (N.W) | 60KG |
| (G.W) | 75KG |
| environmental requirement | Operation Tem:0ºC~40ºC |
| Operation Humidity:10%~80% |
| storage Tem:-20ºC~40ºC |
| storage humidity:5%~95% |
| Structural parts size | panel's demesion(LXW) | 1660 x 928mm |
| machine size(LXWXH)) | 1739 × 1054 × 103mm |
| Package size(LXWXH) | 1739 × 1054 × 103mm |
| | | one year warranty: |
