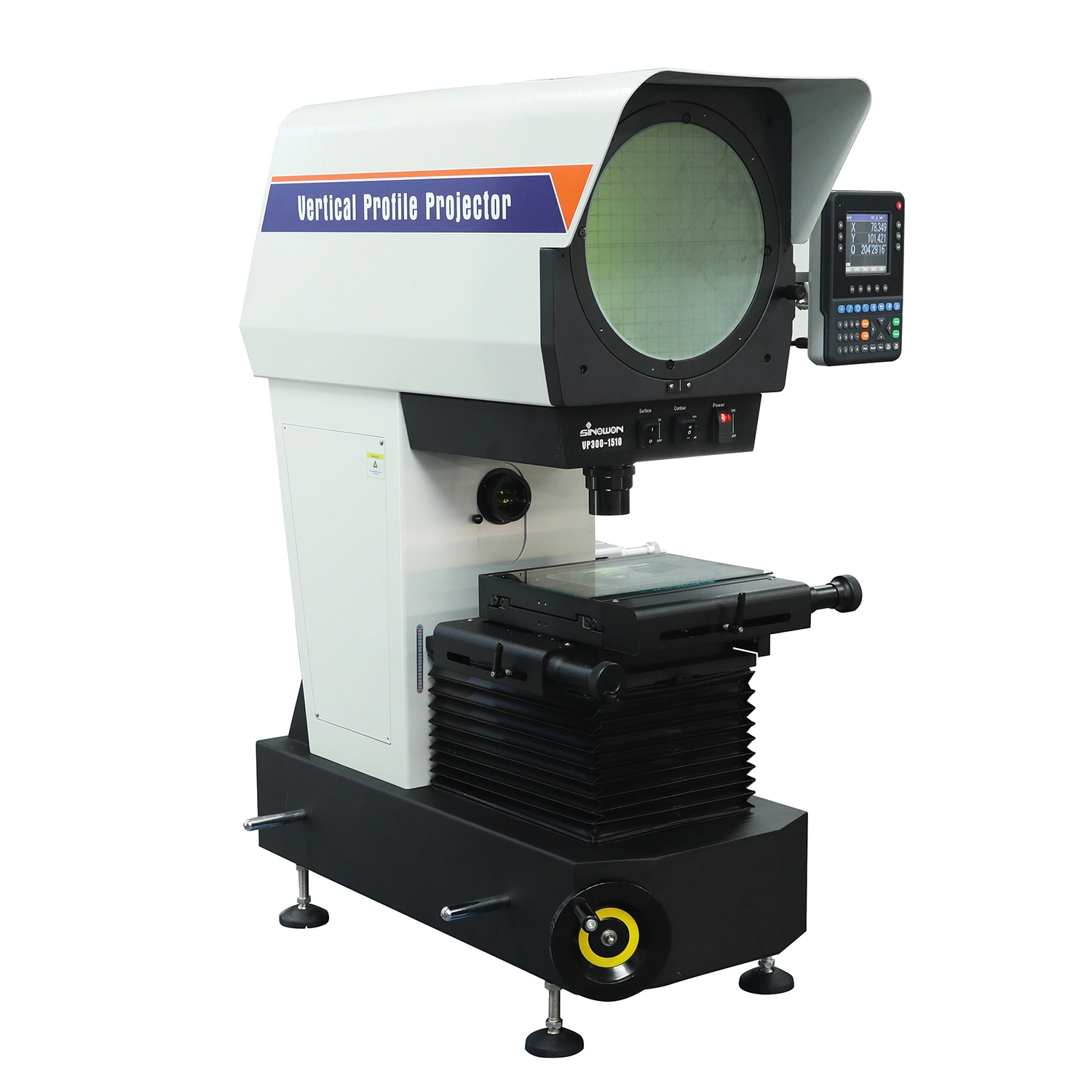

Product Features :
* 300mm diameter screen with digital protractor;
* Double steel guide for stage lifting focus system;
* Halogen profile and surface illumination adjustable;
* Geometric multifunctional data processing system upgrade to DRO DP300;
* Built-in Mini-printer;
* Available 10x,20x,50x,100x objective, rotary table, edge detector, etc.
Technical specifications:
| Reverse Image | VT12-1550 (#511-311) | VT12-1010 (#511-331) | VT12-1510 (#511-351) | VT12-2010 (#511-371) |
| Obverse Image | VT12-1550Z(#511-321) | VT12-1010Z(#511-341) | VT12-1510Z(#511-361) | VT12-2010Z(#511-381) |
| Metal Stage Size | 340x152mm | 230x170mm | 340x170mm | 350x170mm |
| Glass Stage Size | 196x96mm | 145x120mm | 196x120mm | 246x120mm |
| Stage Travel:X and Y-axis | 150x50mm | 100x100mm | 150x100mm | 200x100mm |
| Stage Travel:Z-axis | 100mm (for focusing) | 100mm (for focusing) | 100mm (for focusing) | 100mm (for focusing) |
| Accuracy | ≤3+L/200(um) | ≤3+L/200(um) | ≤3+L/200(um) | ≤3+L/200(um) |
| Resolution of X and Y-scale | 0.0005mm | 0.0005mm | 0.0005mm | 0.0005mm |
| Screen | Diameter :Ø312mm,Effective Range ≥ Ø300(with "* " Reticle) | |||
| Rotary Range: 0~360° ; Resolution Rotary Indicator: 1' or 0.01° | ||||
| Digital Readout | DP 300 (561-301) Multifunctional Data Processing System | |||
| Illumination | Surface and Contour Illumination:24v/150w halogen lamp (adjustable); | |||
| Cooling System | Forced Cooling (3-axis-fans) | |||
| Power Supply | AC110V/60Hz; 220V/50Hz,650w | |||
| Dimension(L×W×H) | 780x530x1150mm | 780x530x1150mm | 780x530x1150mm | 780x530x1150mm |
| Packing Dimension | 990x765x1340mm | 990x765x1340mm | 990x765x1340mm | 990x765x1340mm |
| Gross/Net weight | 200/150kg | 210/155kg | 225/165kg | 220/170kg |
Standard Delivery:
| Product Name | Code # | Product Name | Code # | Product Name | Code # |
| Digital Readout DP300 | 561-301 | VX12-10x Objective | 511-W11 | Screen Clamp Device | 581-341 |
| Built-in Mini-printer | 581-901 | Transmitted lens | 511-T11 | Operation Manual | VT12 |
Optional accessories:
| Product Name | Code # | Product Name | Code # | Product Name | Code # |
| Measuring Software | 581-101 | Rotary Table RT1 | 581-511 | Rotary Table RT2 | 581-521 |
| VX12-20x Objective | 511-W21 | VX12-50X Objective | 511-W31 | VX12-100X Objective | 511-W41 |
| Holder Clamp | 581-841 | V-shape Clamp | 581-831 | Swivel Center Support | 581-851 |
| Working Cupboard ST 02 | 581-621 | Over-Chart ST 140 | 581-311 | Foot-Switch ST 150 | 581-351 |
| Printer Paper | 581-911 | Edge Detector SED-300 | 581-301 | Standard Block ST120 | 581-801 |
