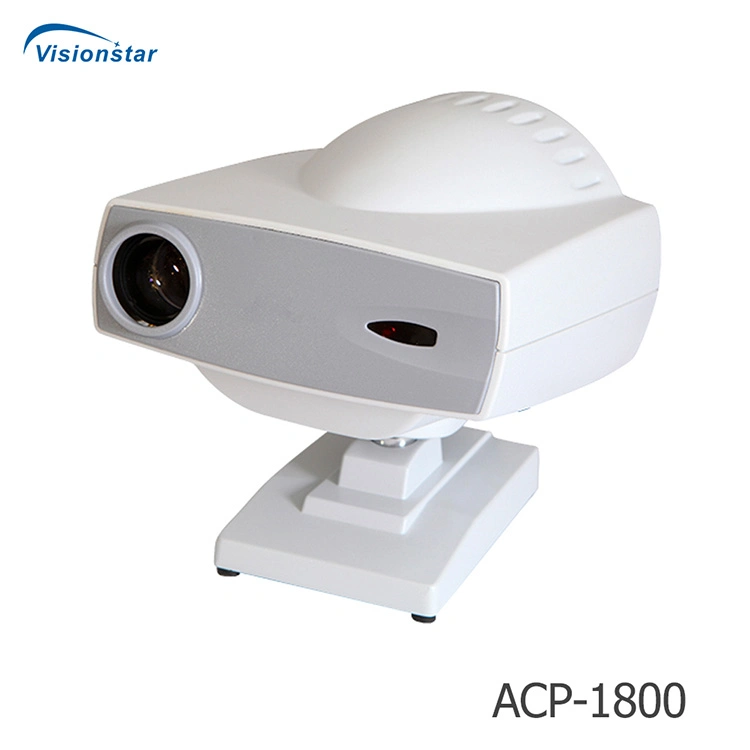

China Ophthalmic Equipment Eye Chart Projector ACP-1800
Features:
ACP-1800 Auto Projector can provide 30 types of clear icons with different functions, and can program icon groups per specific needs. It can produce more precise measurement results in shorter time by remote controller and fast toggling icon, applying red/green & polarized icon test sheet, binocular eyesight and binocular balance.
1. Easy installation and maintenance: It is quite easy to replace light bulks, and unnecessary to adjust its focus and position.
2. Customer Programmable: Icons can be displayed in predefined sequence by programming.
3. Display Single Icon: Display single icon by multi-function mask plate.
4. Tilted Placement: Perfect image position can be obtained by adjusting the horizontal axis of projector.
5. Standards parts: Metal plate with polarized coating (410x 410mm)
Specifications:
Features:
ACP-1800 Auto Projector can provide 30 types of clear icons with different functions, and can program icon groups per specific needs. It can produce more precise measurement results in shorter time by remote controller and fast toggling icon, applying red/green & polarized icon test sheet, binocular eyesight and binocular balance.
1. Easy installation and maintenance: It is quite easy to replace light bulks, and unnecessary to adjust its focus and position.
2. Customer Programmable: Icons can be displayed in predefined sequence by programming.
3. Display Single Icon: Display single icon by multi-function mask plate.
4. Tilted Placement: Perfect image position can be obtained by adjusting the horizontal axis of projector.
5. Standards parts: Metal plate with polarized coating (410x 410mm)
Specifications:
| Model | ACP-1800A/B/C | ACP-1800LA/LB/LC |
| Projection Distance | 1.5m~6m | |
| Projection Magnification | 30x (at 5m) | |
| Projection Size | 330mm (w) x 270mm (H) (at 5m) | |
| Chart | 30 different pattern | |
| Speed of chart conversion | One chart per 0.03s | |
| Mask | 1 open, 5 horizontal different lines, 8 vertical lines, 21 single letters, 1 red/green | |
| Speed of mask conversion | One mask per 0.03s | |
| Program | 2 sets programs, each program contains up to 30 steps | |
| Light source | 12V, 50W Halogen Lamp | LED lamp |
| Auto-off function | After 10 minutes idle time | |
| Power source | AC 220V, 50HZ 0r 110V, 60Hz | |
| Power consumption | 80W | 40W |
| Dimensions | 300mm (L) x 230mm (W) x 240mm (H) | |
| Net weight | 6kg | |
| Accessories | Remote control, polarized metal screen, halogen lamp, polarized glassses, fuses (2), batteries (2) | Romate control, Polarized metal screen, polarized glasses, fuses (2), batteries (2) |
| Optional Accessories | Floor Stand, wall Stand | |
