- Available size: 21.5inch, 32inch, 40inch, 43inch, 46inch, 49inch, 55inch, 65inch, 70inch, 76inch, 86inch, 100inch
- Hot selling: 43inch, 49inch, 55inch, 65inch
- Single-side/double-side
- Resolution: 1920×1080
- Touch: IR touch / PCAP touch
- Glass: explosion-proof tempered glass
- Operation system: standalone version, Android 6.0 / 7.1, Windows 10, Linux
- Content management system: Free for OS version
- Language: English, German, French, Polish, Italian, Spanish, Portuguese, Dutch, Hindi, Russian, Slovak, Latvian
- Color: black, silver, gold, white, any RAL color available
- Housing: Aluminum edge, toughened glass, cold rolled steel
- Package: cartons + pearl cotton + wooden box + wooden frame
- Installation: portrait, landscape, wall-mounted, freestanding
- Pricing term: EXW, FOB, CIF, DDP
- Certificate: CE (EN62368-1:2014+A11:2017) (EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN61000-3-3:2013), RoHs(2011/65/EU; 2015/863/EU), ROHS(IEC62321-1), IP65(EN60529), RoHS(IEC 62321-4:2013+A1:2017, IEC62321-5:2013, IEC62321-6:2015, IEC62321-7-1:2015, IEC62321-7-2:2017, IEC62321-8:2017), IP65(EN 60529:1991+A1:2000+A2:2013)

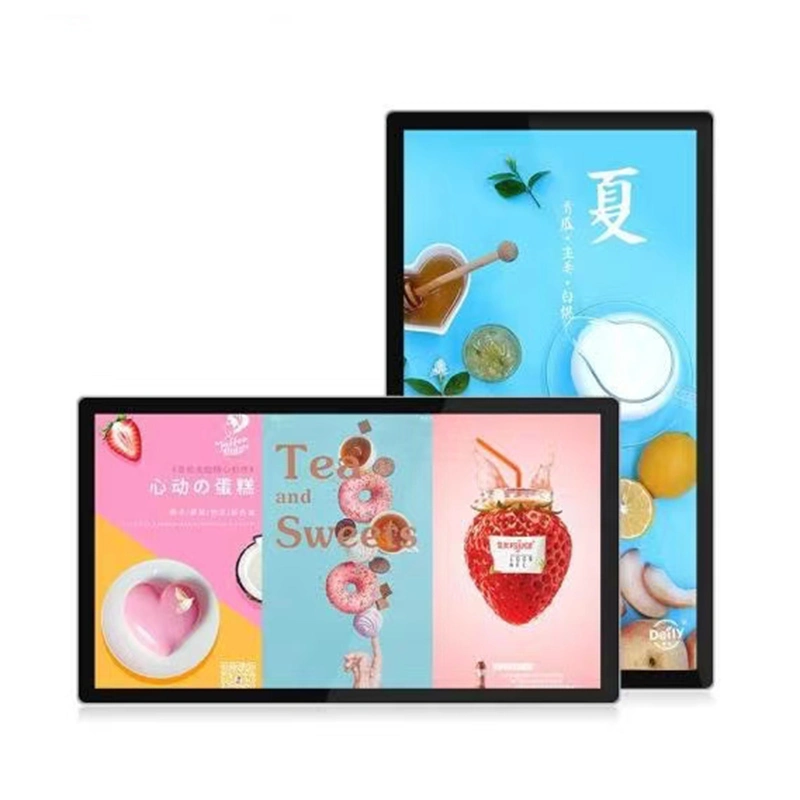

indoor all-in-one CMS display, built-in Android media player, with free CMS, FHD screen
- Ultra-thin body with Ultra narrow side
- Display screen 1080 x 1920, 2K resolution, 4k 3840*2160 UHD resolution optional
- Explosion-proof tempered glass protective
- Support multiple screen split methods by free content management system
- Videos/posters/images can be simultaneously submitted, can be in turn broadcast
- Advanced infrared or Nano or capacitive 6 or 10 points touch screen for you choose
- Remote operation can be timed to monitor, manipulate and broadcast, support remote management
Benefits
We offer a wide spectrum of indoor and outdoor digital signage solutions. All these solutions are powered by our sophisticated, yet easy to use secure cloud-based content management system Web App. Whether you decide to manage one display or thousands, our comprehensive solution can handle any network scale imaginable.
With AVLink Digital Signage Solution, you can:
- Increase customer engagement and enhance your branding with dynamic, enticing, high-definition visuals
- Increase more money: easily update promotions and pricing, at any time, automatically or manually, to influence buying decisions and boost sales
- Decrease costs: reduce printing and distribution costs associated with static display signs by replacing them with digital signage, save expensive labor costs
Application
- Shopping mall
- Commercial building
- Clothing shop
- Cosmetics shop
- Lobby
- Jewelry store
| Specifications | ||||
| TFT Panel | ||||
| Model No. | AVL-ID430 | AVL-ID490 | AVL-ID550 | AVL-ID650 |
| Panel size | 43" TFT-LCD | 49" TFT-LCD | 55" TFT-LCD | 65" TFT-LCD |
| Display area(mm)/mode | 941.2x529.4 mm(H*V) | 1073.8 × 604 mm (H*V) | 1209.6x680.4mm (H*V) | 1428.5×803.5 mm (H*V) |
| Maximum resolution | 1920*1080 | 3840x2160 UHD | ||
| Display color | 16.7M | |||
| Brightness (nits) | 450nits | |||
| Contrast | 1100:1 | 1400:1 | ||
| Visual angle | 178°/178° | |||
| Response time | 5ms | |||
| Life(hrs) | >60,000(hrs) | |||
| Interface | HDMI, RJ-45, SDI, USB, VGA, WIFI (optional) | |||
| System (optional) | ||||
| Operating system | Android or Windows i5, Linux | |||
| RAM | 2G or 4G | |||
| SSD | 8G or 128G | |||
| Content management system | Yes, free | |||
| Appearance | ||||
| Color/appearance | Black, customized | |||
| Case | Metal case SPCC | |||
| Dimension(H*W*D)mm | 1798.82*616*46.5 | 1848.82*688.1*48.5 | 1898.82*759.6*48.3 | 2098.8*906.2*48.5 |
| Net Weight | 55kg | 57kg | 61kg | 89kg |
| Installation | Floor-standing | |||
| Electricity | ||||
| Power supply | AC100~240V 50 /60 HZ | |||
| Power consumption | 75w | 80w | 100w | 120w |
| Standby power consumption | <5w | |||
| Speaker | Yes | |||
| Touch | Optional | |||
| Temperature | ||||
| Working temperature | 0ºC~50ºC | |||
| Storage temperature | -10ºC~60ºC | |||
| Working humidity | 20%~80% | |||
| Storage humidity | 5%~95% | |||
| Detailed functions | ||||
| Video Format | MPEG1/MPEG2/MPEG4/DIVX/ASP/WMV/AVI | |||
| Audio Format | WAVE/MP3/WMA/AAC | |||
| Image Format | JPEG/BMP/TIFF/PNG/GIF | |||
| Image Resolution | 480P/720P/1080P | |||
| Information | ||||
| Terms | Unit Price ( EXW Shenzhen ) | |||
| Unit price | ||||
| Sample lead time | 5~10 working days | |||
| Payment term | 50% deposit, 50% balance before shipment | |||
| Warranty | 1 year free warranty, lifelong technical support | |||
| Price validation | 7 days | |||
| USB | Android/Wifi | Windows | |
| Content update method | Insert U-Disk | CMS or U Disk | CMS or U Disk |
| Operating system | Stand-alone | Android 4.4/5.1/6.0/7.1 | Windows 7/8/10/Linux |
| HD 1080P | YES | YES | YES |
| Intelligent split screen | YES | YES | YES |
| Time Switch | YES | YES | YES |
| Automatic Recognition | YES | YES | YES |
| Wifi network | NO | YES | YES |
| Remote control management | NO | YES | YES |
| APP installation | NO | YES | YES |
| Web surfing | NO | YES | YES |
| CPU | NO | RK3288 | Intel Celeron J1900/Intel Core i3/i5/i7 |
| RAM | NO | 2GB/4GB | 2GB/4GB/8GB |
| SSD | NO | 8GB/16GB/32GB | 64GB/128GB/256GB |
| Interface | HDMI | USB*2, Wifi, LAN, HDMI, VGA | USB2.0*2, USB3.0*2, HDMI*1, VGA*1 |
| Speaker | NO | 2*5W | 2*5W |
| CMS | NO | Yes, for free | Yes, for free |
| Multiple Language | English | Yes, could be your local language | Yes, could be your local language |
| Suitable for | Small amount of terminals that don`t require CMS | Interactive customer experience | Interactive information display with web browser |
Which Certificate AVLink Has?
Each product meets CE Certificate: CE (EN62368-1:2014+A11:2017) (EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN61000-3-3:2013)
RoHS(IEC 62321-4:2013+A1:2017, IEC62321-5:2013, IEC62321-6:2015, IEC62321-7-1:2015, IEC62321-7-2:2017, IEC62321-8:2017)
IP65(EN 60529:1991+A1:2000+A2:2013)
About AVLink Digital Signage Solution:
Shenzhen AVLink technology co., ltd, based on Guangming, Shenzhen, China. Leader of Chinese Outdoor Digital Signage solution.
AVLink was first established as a manufacturer of IP68, IP67, IP65 and IP55 rated outdoor digital signage, high brightness (1500-4000nits) and wide temperature (-40 to +60 degree) LCD display. It is now one of the pioneers who specialized in digital signage solution, smart city solution, passenger information display, outdoor monitors, indoor advertising display
You only need give us about your application, and project details, we will provide you design, planing and affordable digital signage costs, a turnkey signage solution. We have 3500m2 factory, in the peak season, we shipped out more than 1500pcs outdoor display each month.
Outdoor digital signage will have waterproof test and sunlight test, all digital screen will have 48hours aging test before shipping. OEM & ODM services supported for free.
We are China first 15days outdoor display lead time manufacturer. For indoor display only takes 1-3 days.
Who is AVLink?
AVLink is a leading designer, manufacturer and seller of 13.3inch, 21.5inch, 27inch, 32inch, 43inch, 49inch, 55inch, 65inch, 75inch, 86inch and 98inch TFT LCD signs.
AVLink outdoor digital signage production line including billboard advertising, bus advertising, digital display board, digital signage outdoor, kiosk information systems, digital way finding.
Outdoor digital signage displays, high brightness monitor, sunlight readable monitor, street furniture advertising, outdoor digital menu board, drive-thru menu board, outdoor digital display board, as well as outdoor totem, passenger information displays systems, dynamic wayfinding
Shenzhen AVLink semi-outdoor digital signage product including high bright screens, window display screens.
AVLink indoor digital signage solution including video wall display, smart fridge, display stand, interactive whiteboard for kids, digital display, digital menu board, self service kiosk, transparent display, e paper display, digital signage solutions, digital screen display, digital kiosk, advertising displays, software digital signage, digital screen advertising, touch screen coffee table, digital signage for TV.
Interactive whiteboard in the classroom, advertising sign boards, digital kiosk display, transparent refrigerator, floor stand TV mount, digital touch screen, interactive digital wall, interior way finding signage, digital signage for advertising, interactive touch table, advertising sings for small business, stretch display, indoor digital advertising displays, interactive information kiosks, shelf edge screen, smart table, stretched cut monitor, E-Paper, QLED and OLED screen.
Who`s AVLink Digital Signage Customer?
With over 12 years of experience, AVLink has customers include public transport authorities, outdoor media companies, SmartCity solution providers, strategists, and consultants for a range of applications, including Digital Out Of Home DOOH, Street furniture, wayfinding, SmartCity.
AVLink has a wide spectrum of digital signage, products have been installed in Europe(Germany, Netherlands, Poland, France, Italy, Switzerland, Slovakia, Croatia, Azerbaijan, Latvia, Finland, Spain and Portugal), Asia(Israel, Dubai, Russia, Korea, Malaysia), North America (USA), South America (Columbia, Ecuador), Africa(Morocco) etc. For more details please contact our specialist.
For distributor, we will provide free website and catalog material, such as pictures and videos.
Warranty and Support
- One years coverage on all mechanical parts
- Twelve months warranty for all electrical parts
- Free, 7/24/365 online product support from expert
- High-quality engineering
- Over thirteen years of industry experience
Which Kind of Service You Will Get?
- Provide free marketing material to distributor
- Offer the affordable price of high brightness digital signage
- Manufacturer the top quality digital totem
- Provide 7/24 after-sales service
Case story:
Ask Us Anything(FAQ)
A: Manufacturer with more than 10 years experience.
2. Q: What's your main products?
A: We have been focusing on the production of outdoor and indoor digital signage for 10 years.
3.Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.
4. Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime.
5. Q: What is your delivery time?
A: For samples, 1~3 days delivery for indoor dynamic screen, 15~20 dayS for outdoor digital signage
For bulk order, it depends on your quantity and requirements on OEM / ODM.
6. Do you have CMS?
Yes, we provide free content management system for Android or Windows OS digital signage. For the more information about CMS, please download from here.
7. Can I be your distributor?
For distributor issue, please confirm with our director. Send inquiry now!
