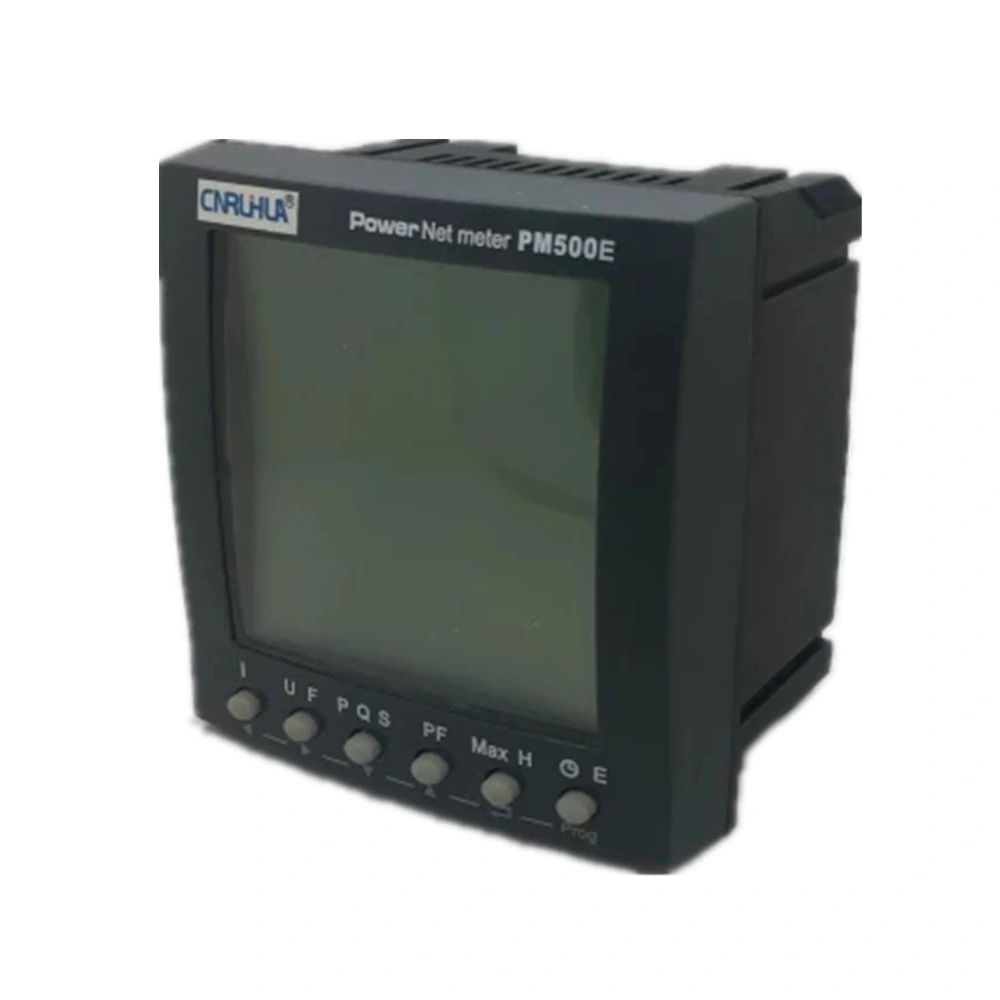

Large-screen LCD multi-function high-definition power meter (PM500E)

Product Description 1.96x962. Digital intellignet panel meter3. Green back light4. RS485, modbus RTUMulti-function Power Analyzer PM500E, with its RS485 communication module ME2-485, measures all the electric quantities of single- and three- phase electric network:Phase current,

Featured Products

Product Description



1.96x96
2. Digital intellignet panel meter
3. Green back light
4. RS485, modbus RTU


Multi-function Power Analyzer PM500E, with its RS485 communication module ME2-485, measures all the electric quantities of single- and three- phase electric network:

Phase current, average phase current
Phase(line) voltage, average phase(line) voltage
Frequency
Phase active power, total active power
Phase reactive power, total reactive power
Phase real power, total real power
Phase power factor, average power factor
Phase current, total active power, total reactive power, total real power maximum at certain duration
Phase current, voltage harmonics at certain duration
Import/export active(reactive) energy

Large Screen LCD Multifunction Power Meter with High Definition (PM500E)

Power meter - PM500Eseries

96x96mm PowerLogic power-monitoring unit for HV and LV networks
The Power Logic PM500M Power Meter provides all measurement capabilities required to monitor an electrical installation in a single 96 x 96 mm unit. Ideal for metering and monitoring applications, it can be integrated in a Power Logic system to increase the reliability of your installation while cutting costs.
Connection: Three phase 4 wires or 3 phase 3 wires, or 2 phase 3 wires.
Signal phae 2 wires

Voltage:
Range: 30-600V wire voltage
20-400 V phase voltage
PT change: 1-10000
45-65Hz
Large Screen LCD Multifunction Power Meter with High Definition (PM500E)

Large Screen LCD Multifunction Power Meter with High Definition (PM500E)
Large Screen LCD Multifunction Power Meter with High Definition (PM500E)
Large Screen LCD Multifunction Power Meter with High Definition (PM500E)
Large Screen LCD Multifunction Power Meter with High Definition (PM500E)
Communication:
RS485, modbus RTU, address 1-247, Baud rate: 1200-19200
Modular and upgradeable
Compact (96 x 96 x 62 mm)
Large back lit display with integrated bar charts
Power and current demand plus THD included in basic version E
Energy Class 1 as defined by IEC 61036 (4 quadrants)

Panel instrumentation.
Sub-billing / cost allocation.
Remote monitoring of an electrical installation.
Monitoring of harmonics (THD).
Make sure you don't miss anything
The PowerLogic PowerMeter PM500 help you:
Reduce energy costs
Improve power quality
Improve continuity of service for optimal management of your electrical installation and a better productivity.


About Us
YUEQING CITY RUIHUA CABINET WHOLE SET EQUIPMENT is a professional manufacturer of low voltage electrical products in South China. Our company is committed to design, production and sale of a series of ozone generator, air pump, PLC, rotary encoder, HMI, sensor, switches, lights, meter and much more other electrical components. And exports various type of electrical appliances to different countries.,

FAQ:

1. Q: Are you a factory or trading company?
A: We are a factory.

2. Q: How long are you company manufacture the products?
A: We are established in 2005 year.

3. Q: How can I get some samples?
A: We are honored to offer you samples.

4. Q: How does your factory do regarding quality control?
A: Quality is priority. CNRUIHUA people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gotten through CE, RoHs standard.


2000 Pairs Sells per Month
5 pairs MOQ
48-72 hours delivery after received money
External: 96 mm×96 mm×61mm
Dimension for the installing hold92 mm×92 mm
Module22 mm×49 mm×65mm
DisplayLCD
Phase/wire connectionSingle-phase network;3P4W;3P3W;
1P3W(balanced & unbalanced loads)
Net Weight:360g
Communication Interface
