IP65 Outdoor Sunlight Readable 55 Inch Interactive Display Large Screen
Key Features:
1. All-Metal Shell Design, Fashion and Beauty, Succinct and Practical, Powerful Function
2. High Brightness LED Backlight, Brightness up to 1500cd/M2
3. 1920*1080 Resolution Ratio, Ultra High Definition Display, Display Delicate Picture.
4. Intelligent Brightness Control, Automatically Adjust Brightness According to Ambient Light
5. Low Reflectivity, Wide Viewing Angle
6. Rich Interface Types to Meet Different application
7. Support A Variety Of Multimedia Formats: Video, Picture + Audio, With Cable Or wireless
Web Edition Features
Specification:
Product Pictures:
Our Certificates:
Our Package:
Our services:
Pre-sale services
1. Provide total solutions according to customer request free of charge.
2. Provide local technical support if neccessary.
In-sales services
1. Delivery on time
2. Provide structure and installation drawing according to customer request
3. High efficiency transportation service
After-Sales services
1. One year free maintenance, life time maintenance
2. 7*24 hours response time
3. Provide necessary accessories with products
4. Free technical training
5. Regular telephone satisfaction return test
6. Software upgrade free of charge.
Hey Guys, warmly welcome your visit:
Key Features:
1. All-Metal Shell Design, Fashion and Beauty, Succinct and Practical, Powerful Function
2. High Brightness LED Backlight, Brightness up to 1500cd/M2
3. 1920*1080 Resolution Ratio, Ultra High Definition Display, Display Delicate Picture.
4. Intelligent Brightness Control, Automatically Adjust Brightness According to Ambient Light
5. Low Reflectivity, Wide Viewing Angle
6. Rich Interface Types to Meet Different application
7. Support A Variety Of Multimedia Formats: Video, Picture + Audio, With Cable Or wireless
Web Edition Features
- Motherboard configuration
- CPU A20: dual-core ARM Cortex-A7 architecture, clocked at 1.0 GHz
- Built-in memory: NAND FLASH 4G (optional 8G/16G/32G)
- Memory Expansion: support 32GB SD card expansion, simultaneously support SATA hard disk
- Memory: 1G (optional)
- Network Support: LAN/WAN/WIFI/3G (optional)
- Bluetooth: Bluetooth function (optional)
- File System: Operating System Android 4.2.2 (support upgrade)
- Languages: Simplified Chinese, Traditional Chinese, English, French, German, Italian etc
- Powerful background management functions to manage advertising machines anywhere via the Internet
- Support vertical screen playback, arbitrary split screen, scrolling subtitles, time switch, USB data import, play log records and other functions
- Support loop, timing and other play modes and playlist preset functions
- Available through management software, remote power on or off, restart and timer switch function
- Support network remote update program, you can also use U disk to manually update
- When the network is disconnected, the AD player will play as a click advertisement machine
- Support for HTTP, log management, remote on demand, picture linking programs, memory playback, third party docking, dynamic screen capture, load balancing
Specification:
| Model Number | YHAP215-OD02 |
| Description | 55" Outdoor High Brightness Double Side Advertisement Player |
| Panel Type | a-Si TFT-LCD |
| Backlight | LED Backlight |
| Active Display Area | 1209.6mm * 680.4mm |
| Brightness | 1500cd/m2 |
| Resolution | 1920*1080 RGB |
| Contrast Ratio | 1300:1 |
| Aspect Ration | 16:9 |
| Pixel Pitch | 0.63mm * 0.63mm |
| Viewing Angle | 89°/89°(L/R), 89°/89°(U/D) |
| Display Color | 1.07B |
| Response Time | 10ms |
| Input Interface | VGA, HDMI, USB, RJ-45, SD/CF, TV, WIFI(option) |
| Touch Panel | Capacitive touch screen(Option) |
| Voltage | AC100-240V 50/60Hz |
| Power Consumption | ≤180W |
| Standby Consumption | 3W |
| Cabinet | Aluminum alloy frame+ Bending welding of cold rolled steel + Powder coating + Toughened glass |
| Outline Dimension | 1280m(L)*900mm(W)*120mm(H) |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |

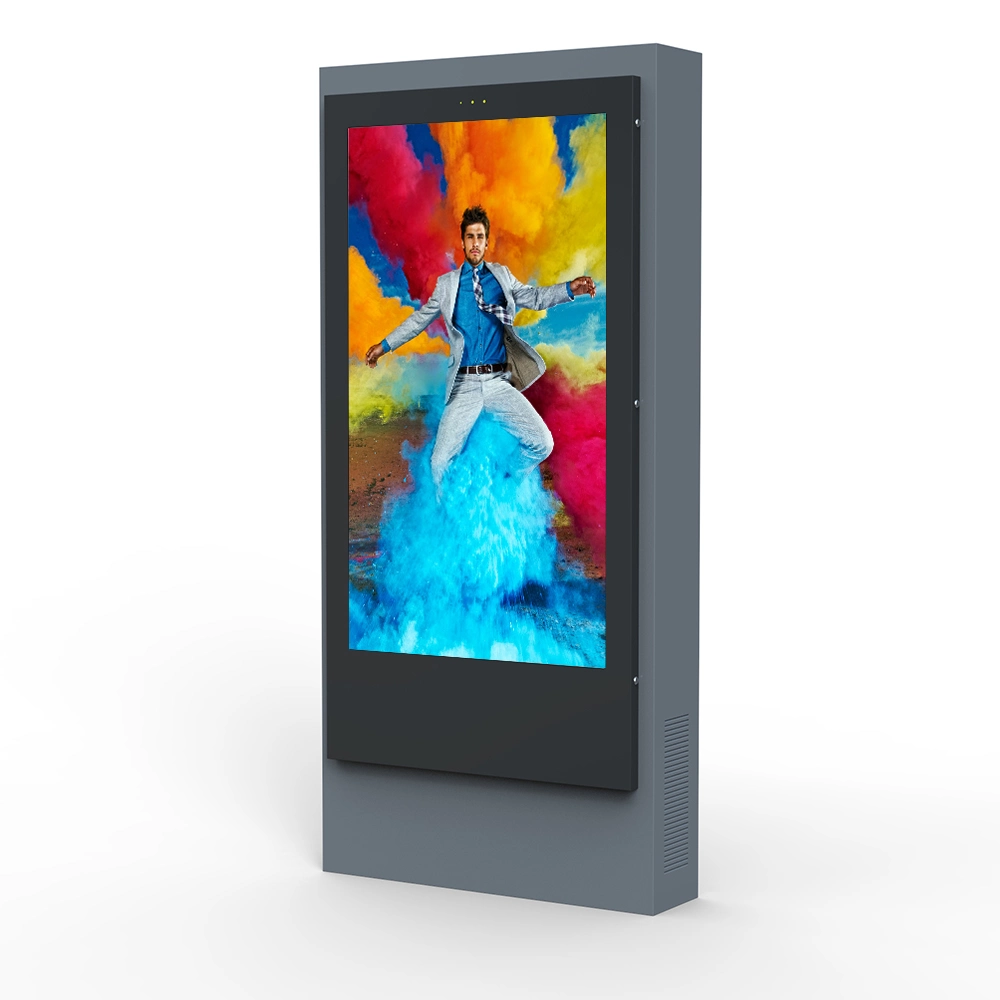

Product Pictures:
Our Certificates:
Our Package:
Our services:
Pre-sale services
1. Provide total solutions according to customer request free of charge.
2. Provide local technical support if neccessary.
In-sales services
1. Delivery on time
2. Provide structure and installation drawing according to customer request
3. High efficiency transportation service
After-Sales services
1. One year free maintenance, life time maintenance
2. 7*24 hours response time
3. Provide necessary accessories with products
4. Free technical training
5. Regular telephone satisfaction return test
6. Software upgrade free of charge.
Hey Guys, warmly welcome your visit:
