[linear guide details]Guide rail, also known as slide rail, linear guide rail, linear guide rail is used in the situation of linear reciprocating motion. It has higher rated load than linear bearing, and can bear certain torque at the same time. It can realize high-precision linear motion under the condition of high loadDouble a

Featured Products

[linear guide details]
Guide rail, also known as slide rail, linear guide rail, linear guide rail is used in the situation of linear reciprocating motion. It has higher rated load than linear bearing, and can bear certain torque at the same time. It can realize high-precision linear motion under the condition of high load

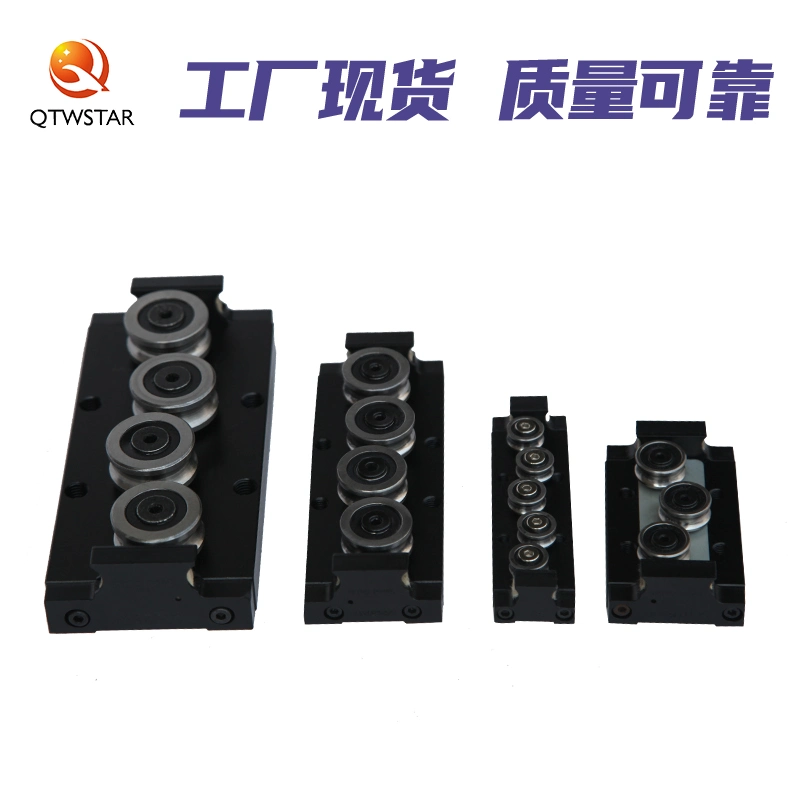

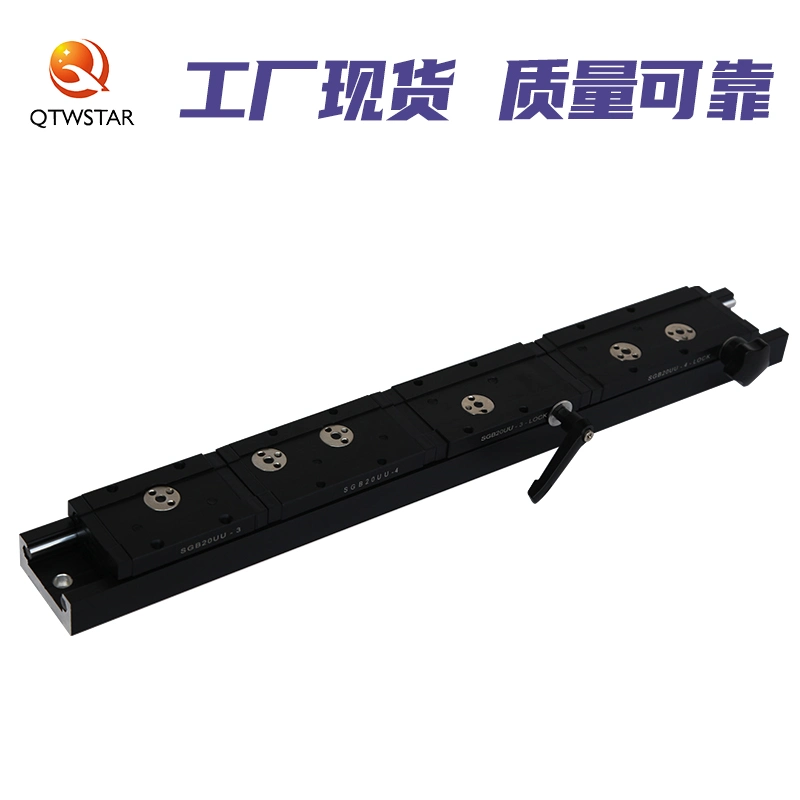

Double axis guide rail is a kind of guide rail pair of linear motion, which is divided into two categories. They are built-in double axis linear guide rail, also known as internal slide rail series, namely ISG series double axis guide rail; external double axis linear guide rail, also known as external slide rail, namely OSG series double axis guide rail. The external clamp type is that the slide block is outside the guide rail. It is divided into OSG series external clamp double axis guide rail and LGD series external clamp double axis guide rail. The slide block is wider than the guide rail. The main difference between the two external clamp double axis guide rails is that the roller bearings used are different
Company pictures
How to Connect Linear Guide Rail Joint, Directory of Linear Guide Manufacturer, Sbc Linear Guide Sales
[features of double axis guide rail]
1. Use in harsh environment: the influence of dust, cutting chips and other impurities on roller guide rail is almost zero.
2. Consequence of separation of roller guide slider and guide rail: during the installation or display of roller guide rail, the slider can be removed from the guide rail at any time without any worries.
3. Installation accuracy requirements: the use of assembled precision roller guide rail has almost no impact, saving time and labor. The assembly time of roller guide is only 1 / 4 of that of ball guide.
4. Corrosion resistance and rust resistance: double axis center type slide rail and slide block, axis support seat, material is aluminum alloy, after processing, the surface is anodized, which is not only beautiful in appearance and corrosion resistance, but also has excellent rust resistance effect due to hard chromium plating on the axis without rust.
5. Eccentric roller: when assembling the roller guide, if necessary, use the concentric roller and eccentric roller for assembly, which can solve the problem of preload between the slider and the guide, and ensure that the slider moves quickly, smoothly and without gap.
6. Compared with ball guide, roller guide can obtain faster transmission speed, better transmission smoothness and low noise.
7. High accuracy of assembly. The guide rail of the roller guide rail and the sliding block are assembled like the elastic piston, without any clearance. The guide rail of the ball guide must be smaller than the slider to assemble the slider, so there is a certain gap. The accuracy is not as good as the roller guide.
Features of double axis guide rail: 1. High repetitive positioning accuracy. 2. High abrasion resistance: the steel shaft is specially hardened, with high abrasion resistance. 3. Popular, low cost, price advantage. 4. High dust-proof performance, the slider adopts roller type, and dust-proof oil seal is installed on both sides of the slider. 5. The design is unique, the guide rail itself is light and simple, and the maintenance is convenient.
Double axis guide rail has a wide range of application in the use of mechanical equipment. Photography equipment track, entertainment machine slide track, blank coding machine, vacuum brick coding machine, high-end furniture, drawer cabinet slide track, semiconductor machinery, mechanical arm, medical equipment, transportation and delivery machinery, construction equipment, high-end display cabinet, jewelry display cabinet, high-end drawer track, furniture track slider, display cabinet bottom sliding track, decoration cabinet slide track, kitchen utensils guide track, home decoration mobile door track, etc.
Price advantage
1. Reduce product price by half
2. Reduce product assembly time by one third
3. Reduce repair and replacement costs by a quarter
High wear resistance
The steel shaft is specially hardened and has high wear resistance
high reliability
1. Eccentric nut design: easy to adjust, different load should be adjusted to the most suitable clearance,
2. Anti loose design: eccentric nut type, fixed nut design of bearing guide wheel has anti loose function
High-precision
1. Repeatability: within three microns
2. Speed: five times faster than other models, up to 10 meters per second and low noise
3. Straightness: within plus or minus 10 microns
4. Adjustable guide wheel preloading: under different loads, adjust the preloading to make the gap between guide wheel and guide rail reach "zero"
5. Parallel bearing guide wheel: improved parallel accuracy within 0-6m without obvious error
Original design
The product design is solid (combination of aluminum and high carbon steel), which can be used as support or base plate, greatly reducing the design and production cost and achieving the highest benefit
Features of double axis guide rail
*Seven domestic / foreign exclusive rights: speed Guide
*Won the science and Technology Innovation Award in 2001
*Recommended as a successful patent technology
*Yield and standard products
Double axis guide technology
*Repeatability accuracy: within three microns
*Five times faster than existing models
*Straightness: within plus or minus 10 microns
*Adjustable preloading: Zero void standard
*Anti loose design: eccentric nut type
Price of double axis guide rail
*50% reduction of product price - (reduction of waste materials, time, labor and processing costs)
*Reduce portfolio time by a third
*Reduce maintenance and replacement costs by a quarter
Qtwstar double axis linear guide high precision:
1. Repetition accuracy: within three microns
2. Speed: five times faster than other models, up to 10 meters per second and low noise
3. Straightness: within plus or minus 10 microns
4. Adjustable guide wheel preloading: under different loads, adjust the preloading to make the gap between guide wheel and guide rail reach "zero"
5. Parallel bearing guide wheel: the parallel accuracy is improved within 0-6m without obvious
Qtwstar double axis linear guide high reliability
Eccentric design, the manufacturer has obtained the international registration technology, adjustable preloading to zero gap, adjustment is very easy and simple, adjust the most appropriate preloading according to the needs of different weight components
High precision
Parallel bearing pulley improves high precision effect by + / -0.02mm, with stroke up to 6m long without cumulative error
High speed operation
Travel up to per second
