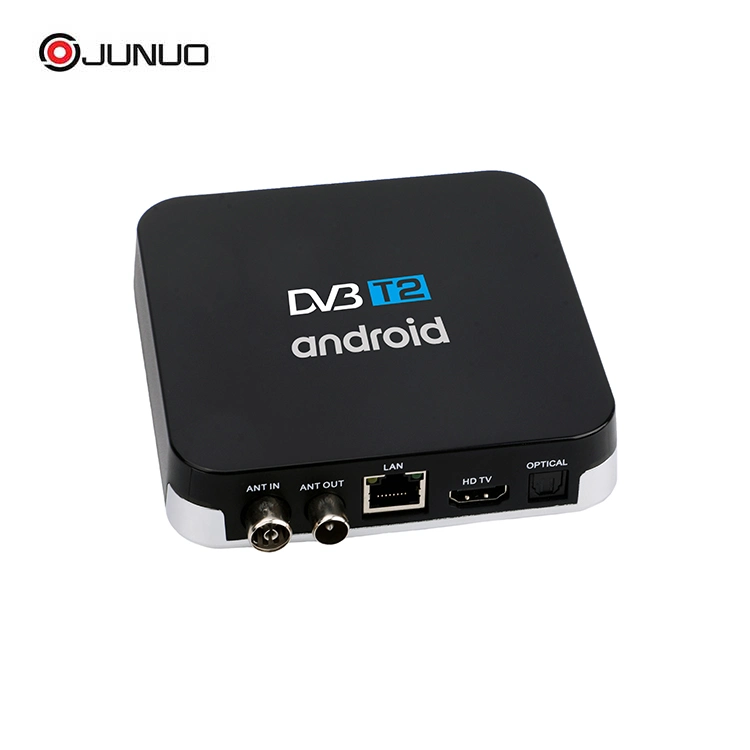

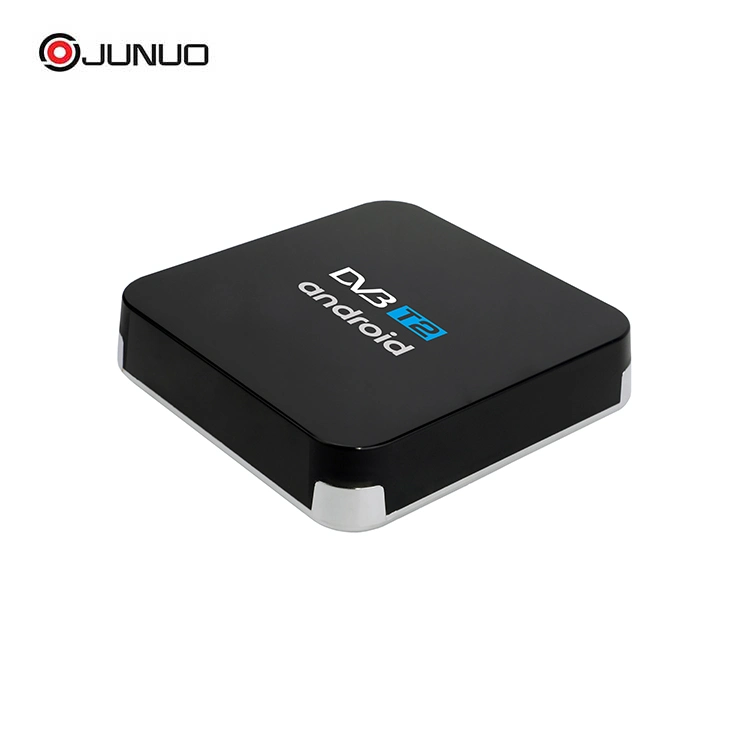

4K Online Movies Hdr+ Android 7.1 DVB-T2 TV Box
Specification
Hardware
CPU: S905D: Qual Core 64-bit A53 Up to 1.5GHz
GPU: S905D: Penta Core Mali-450
RAM: S905D: 2GB (Optional : 3GB)
ROM: EMMC Flash 8GB (Optional : 16GB,32GB)
Video Decoder: H265 4K @ 60fps 10bits, VP9 profile 2, H264 4K @ 30fps, AVS+ 1080P @ 60fps
Video Encoder: H264 1080P @ 60fps
Bluetooth: Bluetooth (Optional)
Demodulation
DVB-S2
Standard: ETSI EN 307-421 V1.2.1 compliant
Input RF Frequency: 950MHz to 2150MHz
QPSK Code Rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK Code Rates: 3/5, 2/3, 3/4, 5/6, 9/10
Symbol Rates : QPSK : 1- 55 Msps 8PSK : 1 - 45Msps
DVB-T/T2
DVB_T System standard : ETSI EN 300-744 V1.6.1 compliant
DVB_T2 System standard: ETSI EN 302-755 V1.3.1 compliant
MPLP supported
Demodulation: 16QAM / 64QAM / 256QAM
Bandwith: 6 / 7 / 8 MHz
Input Frange range:54--860MHz lnput lmpedance:75
Input Signal levl:-84 dBm ~ 0 dBm
ISDB-T
Standard: ARIB STD-B31 V1.6-E2 compliant
Support 13 segments (full segment)
VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz.
Bandwith: 6MHz
DQPSK / QPSK / 16QAM / 64QAM
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
Input Signal level : -83 ~ - 5dBm
ATSC
Standard ISO/IEC 13818-1; ARIB STB-B10 compliant
Terrestrial : ATSC specification: 8VSB demodulation
Cable : Open Cable specification : 64QAM, 256QAM demodulation
Input Signal level : -83 ~ -5dBm
DTV Software Feature
7-days EPG/Teletext/Subtitle/PVR/Timeshift/Channel Manager/Parental Control
DVB-S2: Blind/Auto/Manual/Network Channel Scan
DVB-T2/ISDB-T: Auto/Manual Channel Scan/Logical Channel Number/
Antenna Power Control
ATSC: CC supported
If you are interested in any of our products. Please do not hesitate to contact us for futher informantion.
Product Detalis:
FAQ:
Specification
Hardware
CPU: S905D: Qual Core 64-bit A53 Up to 1.5GHz
GPU: S905D: Penta Core Mali-450
RAM: S905D: 2GB (Optional : 3GB)
ROM: EMMC Flash 8GB (Optional : 16GB,32GB)
Video Decoder: H265 4K @ 60fps 10bits, VP9 profile 2, H264 4K @ 30fps, AVS+ 1080P @ 60fps
Video Encoder: H264 1080P @ 60fps
Bluetooth: Bluetooth (Optional)
Demodulation
DVB-S2
Standard: ETSI EN 307-421 V1.2.1 compliant
Input RF Frequency: 950MHz to 2150MHz
QPSK Code Rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK Code Rates: 3/5, 2/3, 3/4, 5/6, 9/10
Symbol Rates : QPSK : 1- 55 Msps 8PSK : 1 - 45Msps
DVB-T/T2
DVB_T System standard : ETSI EN 300-744 V1.6.1 compliant
DVB_T2 System standard: ETSI EN 302-755 V1.3.1 compliant
MPLP supported
Demodulation: 16QAM / 64QAM / 256QAM
Bandwith: 6 / 7 / 8 MHz
Input Frange range:54--860MHz lnput lmpedance:75
Input Signal levl:-84 dBm ~ 0 dBm
ISDB-T
Standard: ARIB STD-B31 V1.6-E2 compliant
Support 13 segments (full segment)
VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz.
Bandwith: 6MHz
DQPSK / QPSK / 16QAM / 64QAM
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
Input Signal level : -83 ~ - 5dBm
ATSC
Standard ISO/IEC 13818-1; ARIB STB-B10 compliant
Terrestrial : ATSC specification: 8VSB demodulation
Cable : Open Cable specification : 64QAM, 256QAM demodulation
Input Signal level : -83 ~ -5dBm
DTV Software Feature
7-days EPG/Teletext/Subtitle/PVR/Timeshift/Channel Manager/Parental Control
DVB-S2: Blind/Auto/Manual/Network Channel Scan
DVB-T2/ISDB-T: Auto/Manual Channel Scan/Logical Channel Number/
Antenna Power Control
ATSC: CC supported
If you are interested in any of our products. Please do not hesitate to contact us for futher informantion.
Product Detalis:
FAQ:
1.Will you provide samples? Yes, we have ready sample to test quality and signal, and you can contact us to get the price. |
2.What is your MOQ? It's 1000pcs for OEM orders. |
3.How about the OEM/ODM service? We provide all kinds of OEM/ODM service,eg:Logo printing on housing,Customized packag, Software Customization. |
5.What is your method to deliver goods? Normally, we ship goods by sea,air and express. |
6.How about the delivery? The delivery would be with in 25 days according to the order quantity and size of the items. |
| If you are interested in any of our products. Please do not hesitate to contact us for futher informantion. |
